SS Fabrication designs and manufactures industrial fermentation plants for controlled microbial processing. These plants are engineered for enzyme production, organic acids, bio-products, ethanol, and other fermentation-based applications. Each fermentation plant is configured based on product type, batch size, aeration requirement, and downstream processing needs.
The systems include fermenters, media preparation units, sterilization systems, air handling modules, process controls, and downstream separation equipment integrated into a complete turnkey fermentation plant.
Fermentation Plant Design & Applications:
Industrial fermentation plants can be designed for:
- → Enzyme production
- → Organic acid fermentation (citric acid, lactic acid, etc.)
- → Bio-ethanol and alcohol fermentation
- → Yeast and probiotic production
- → Biofertilizer fermentation
- → Microbial culture production
- → Biochemical and specialty fermentation products
Plant configuration depends on oxygen transfer requirement, agitation type, sterility level, and process control strategy.
What We Offer – Turnkey Fermentation Plant:
SS Fabrication provides complete fermentation plant solutions including:
Fermentation process equipment design
Stainless steel fermenter fabrication
Seed fermenter and inoculum systems
Media preparation and sterilization systems
Aeration and air handling systems
Instrumentation and automation integration
Piping and skid fabrication
Installation and commissioning support
Plants can be configured for batch, fed-batch, or continuous fermentation operation.
Fermentation Plant Design & Applications:
A complete fermentation plant typically includes:
- → Production Fermenter
- → Seed Fermenter System
- → Media Preparation Tank
- → Continuous / Batch Sterilization System
- → Air Compressor and Air Handling Unit
- → Sterile Air Filtration System
- → Heat Exchanger / Cooling System
- → Agitation and Aeration System
- → Nutrient Dosing System
- → Foam Control System
- → Process Piping and Valves
- → Control Panel and Instrumentation
Fermenters can be designed with jacketed construction, internal coils, spargers, agitators, and multiple instrumentation ports for controlled fermentation.
Automation & Process Control
Industrial fermentation requires precise monitoring and control of critical parameters to ensure consistent product quality. The fermentation system is typically equipped with integrated control loops for temperature, pH, dissolved oxygen, aeration, and agitation.
Temperature is maintained using heat exchangers and controlled cooling systems, while pH is regulated through controlled dosing of acid or base solutions. Dissolved oxygen levels are managed through a combination of agitator speed, aeration rate, and air supply pressure. Foam formation, a common challenge in fermentation, is controlled using sensors and automated antifoam dosing systems.
All process parameters can be integrated into a centralized control panel, enabling real-time monitoring, adjustment, and data logging for efficient plant operation.
Downstream Processing Equipment
Once fermentation is complete, the product must be separated and processed depending on its physical and chemical characteristics. This stage involves a combination of mechanical and filtration-based systems designed to handle varying levels of solids and product concentration.
Centrifuges are commonly used to separate biomass from the fermentation broth, especially in high-cell-density processes. For finer separation and product concentration, membrane filtration systems such as microfiltration and ultrafiltration are employed. These systems allow selective separation of cells, proteins, and smaller molecules.
In applications requiring further concentration or drying, additional equipment such as evaporators and drying systems may be incorporated. The downstream configuration is always tailored to the specific product and required purity levels.
Utilities & Air Handling System
A stable and sterile operating environment is essential for fermentation processes. This is achieved through a dedicated air handling and utility system that supports both process performance and hygiene requirements.
Compressed air is first generated using an oil-free compressor and then cooled, dried, and filtered to remove moisture, contaminants, and microorganisms. The air passes through multiple stages including after-cooling, moisture separation, desiccant drying, activated carbon filtration, and finally sterile filtration before entering the fermenter.
In addition to air systems, the plant includes utilities such as cooling water, chilled water (if required), and steam for sterilization. These systems ensure proper temperature control, sterility, and continuous operation of the fermentation process.
Cleaning & Sterilization Systems
To maintain hygiene and prevent contamination, fermentation plants are equipped with automated cleaning and sterilization systems. These systems eliminate the need for manual cleaning and ensure repeatable, validated cleaning cycles.
The Clean-in-Place (CIP) system circulates cleaning solutions such as water, caustic, and acid through tanks, piping, and process equipment. This is followed by Steam-in-Place (SIP), where steam is used to sterilize the system before the next production cycle.
Integrated cleaning systems improve operational efficiency, reduce downtime, and maintain consistent process conditions across batches.

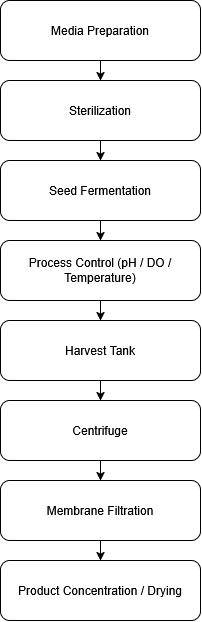

Typical Fermentation Process Flow
Integrated cleaning systems improve operational efficiency, reduce downtime, and maintain consistent process conditions across batches.
Turnkey Fermentation Plant Manufacturer
SS Fabrication provides complete industrial fermentation plant solutions including design, fabrication, installation, and commissioning. Plants are customized based on fermenter capacity, product type, and automation requirements.
Share your product, batch size, and process requirement, and we can help design a suitable fermentation plant configuration.
Ready to set up an industrial fermentation plant?
Book a technical discussion to finalize layout, capacity, and equipment configuration.
