Limpet coil reactor vessels are used to control the temperature of the reactants with the help of heating or cooling media
circulated through coils surrounding the main vessel. Ideally suitable for medium heat transfer requirement and heating
application where heating media temperature is above 150 Centigrade (302 Fahrenheit). Coils are half piped welded on the
outer side of the main vessel.
Stainless Steel Reactor for API, Chemical & Pharma
Stainless Steel Chemical Reactor with process demand by customer as per we fabricate Jacketed vessel, limpet coil reactor, dimple
type reactor, high pressure reactor for chemical processing or chemical process reactor , Reactor with Mechanical seal , Reactor
with Limper Coil , Reactor with Jacket Stainless Steel, reactor for pharmaceutical, agricultural, fertilizer, petrochemical, and
power industries which commonly use salts, acids and other chemicals .
• We offered separately for valves, fittings, pipe and automation as per customer demand / requirement.
• Our reactor vessel shall be fabricated as per cGMP guide line with Different types of agitator design.
• Our stainless steel reactor vessel offer Registered with leading consultants and third party inspection agency / FAT.
• Reactor with Jacket and Limpet type of rector will be designed for cooling and heating during exothermic or endothermic reactions.
• Stainless Steel Reactor with GMP Standard range of Equipments manufacturing for Pharmaceutical industry. With special mirror finish from 220 grit to 440 grit, proper smooth welding all angles and line, flush grinding and Insulation with mirror finished S.S cladding.
• Stainless Steel Reactor or Industrial Reactor with direct drive design for the agitator , with variable drive – VFD option to vary the RPM of the drive as per customer needed .
Reactor for API, Suitable for resins, adhesives, paint, cosmetics, reactor for pharma and other chemical production. Reactor with
Stirring, mixing, heating, cooling, pumping vacuum, so that the material to react, polymerization. Stainless Steel Chemical Reactor
and Reaction kettle is generally composed of a kettle body, a driving device, a stirring device, heating device, a cooling device, and
a sealing device.
Capacity :
500 LITRES TO 40KL Reactor with Bottom Entry Agitator, Reactor with Cooling Coil ,Jacketed Reactor / Insulation / SS Cladded
Reactors , Reactor with Limpet and Jacket , Limpet Reactor , SS 316 – Reactor with Double Mechanical Seal and Stainless steel
pressure vessels or reactors to meet our customer’s application with requirements as per ASME Code stainless steel reactor
design and stainless steel reactor vessel.
LIMPET COIL REACTION VESEEL
We are engaged in manufacturing quality range of Reaction Vessels in which chemical reaction takes place. Reaction Vessels are commonly
used in Pharmaceutical, Chemical, Resin, Petrochemical, Adhesives, Dyes and Paint Industries. We offer high quality reaction vessel
in different capacities ranging from 50 liters to 50,000 liters, Pressure Range : 10 to 20 kg/cm/g and Temp. Range up to 200 ºC
Material of Constructions
Various materials of construction, such as M.S, Alloy Steel, SS 304, SS 316, SS 316L,Duplex, Rubber Lined etc, can be offered as per requirement.
SALIENT FEATURES:
• As per ASME,ASTM,TEMA DIN, BIS, IS, API, and C-GMP
• Radiography Welding Quality done Qualified Welders.
• High quality mirror finish
• MS/SS Jacket or limpet coil for steam heating, cooling
• Shaft entry sealed by oil seal, plain or water-cooled stuffing box, single or double mechanical seal
• High-density glass wool insulation & SS cladding can be done on demand.
TYPES OF STIRRERS:
• Anchor
• Pitch Blade Turbine
• Propeller
• Hydrofoil
• High Speed Homogenizer

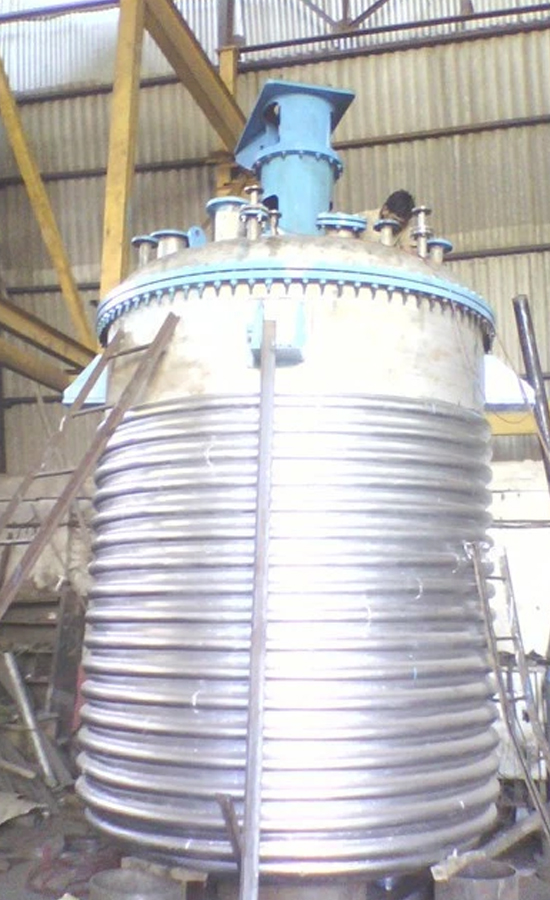

Limpet Coil Reaction Vessel consist of a Cylindrical vertical shell with standard torispherical dish on both ends.
A Limpet Half Pipe is provided on the Outside of the shell & on the dish for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media.
Agitator assembly mounted on the Top dish of Reactor consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing and Ball bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Water cooled Stuffing box filled with gland rope pressed by Gland pusher is also provided.
On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor, Double Anchor, Gate, Paddle, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement.
